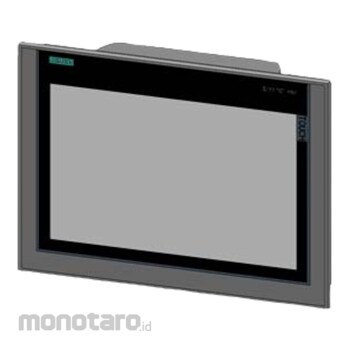

SIEMENS SIMATIC HMI TP1200 Comfort Panel
#Grup produk P105196460
Spesifikasi
| Product Type Designation | TP1200 Comfort |
|---|---|
| Design of Display | TFT |
| Screen Diagonal (inch) | 12.1 |
| Display Width (mm) | 261.1 |
| Display Height (mm) | 163.2 |
| Number of Colors | 6777216 |
| Backlight Dimmable | Yes; 0-100% |
| Design as Touch Screen | Yes |
| Dimensions Mounting Cut Out (WxH) (mm) | 310x221 |
| Dimensions of Housing Front (WxH) (mm) | 330x241 |
| Max. Permissible Angle of Inclination without External Ventilation (°) | 35 |
| Mean Time Between Failure Backlight (hour) | 80000 (@25°C) |
| Mounting Position | vertical |
| Number of Function Keys | 0 |
| Numeric/Alphanumeric Keyboard | Yes; Onscreen keyboard |
| Overall Depth (mm) | 65 |
| Permissible Range, Lower Limit (DC)(V) | 19.2 |
| Permissible Range, Upper Limit (DC)(V) | 28.8 |
| Resolution HxV (pixels) | 1280x800 |
| Weight without Packaging (g) | 360 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
SIMATIC HMI TP1200 Comfort, Comfort Panel, Touch operation, 12" widescreen TFT display, 16 million colors, PROFINET interface, MPI/PROFIBUS DP interface, 12 MB configuration memory, Windows CE 6.0 (Microsoft Support included Security updates discontinued) configurable from WinCC Comfort V11
