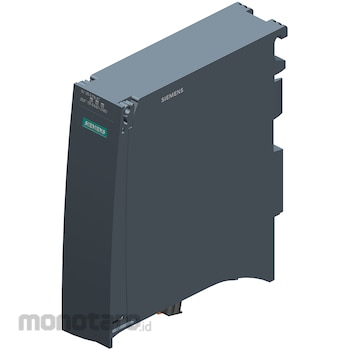

SIEMENS SIMATIC ET 200MP. PROFINET IO-Device Interface Module
#Grup produk P105196406
Spesifikasi
| Product Type Designation | IM 155-5 PN ST |
|---|---|
| HW Functional Status | From FS01 |
| Firmware Version | V4.1.0 |
| Product Function I&M Data | Yes; I&M0 to I&M3 |
| STEP 7 TIA Portal Configurable/Integrated from Version | V14 or higher with HSP 0223/integrated with V15 or higher |
| Permissible Range, Lower Limit (DC)(V) | 20.4 |
| Dimensions (WxHxD) (mm) | 35x147x129 |
| Infeed Power to the Backplane Bus (W) | 14 |
| Installation Altitude Above Sea Level Max. (m) | 5000 (Restrictions for installation altitudes > 2000m, see manual) |
| Interface Types Transmission Procedure | PROFINET with 100 Mbit/s full duplex (100BASE-TX) |
| Isolation Tested (V) | 707 DC (type test) |
| Mains/Voltage Failure Stored Energy Time (ms) | 10 |
| Modules per Rack Max. | 30; I/O modules |
| Permissible Range, Upper Limit (DC)(V) | 28.8 |
| Power Available from the Backplane Bus (W) | 2.3 |
| Power Loss Typical (W) | 4.5 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
SIMATIC ET 200MP. PROFINET IO-DEVICE INTERFACEMODULE IM 155-5 PN ST FOR ET 200MP ELEKTRONIKMODULES; UP TO 12 IO-MODULES WITHOUT ADDITIONAL PS; UP TO 30 IO- MODULES WITH ADDITIONONAL PS SHARED DEVICE; MRP; IRT >=0.25MS; ISOCHRONICITY FW-UPDATE; I&M0...3; FSU WITH 500MS
