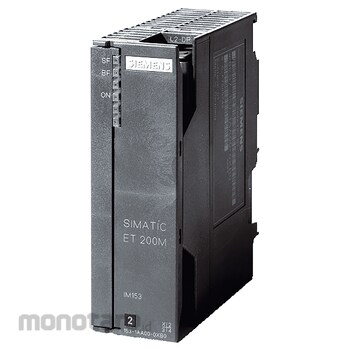

SIEMENS SIMATIC DP, Connection ET 200M IM 153-2 High Feature
#Grup produk P105196363
Spesifikasi
| Product Type Designation | IM 153-2 DP HF |
|---|---|
| Vendor Identification (VendorID) | 801Eh |
| Rated Value (DC)(V) | 24 |
| Permissible Range, Lower Limit (DC)(V) | 20.4 |
| Permissible Range, Upper Limit (DC)(V) | 28.8 |
| External Protection for Power Supply Lines (recommendation)(A) | 2.5 |
| Backplane Bus (5V DC) Max. (A) | 1.5 |
| Bus Protocol/Transmission Protocol | PROFIBUS DP to EN 50170 |
| Current Consumption Max. (mA) | 600 |
| Dimensions (WxHxD) (mm) | 40x125x117 |
| Inrush Current, Typ. (A) | 3 |
| Isolation Tested | Isolation voltage 500V |
| Mains/Voltage Failure Stored Energy Time (ms) | 5 |
| Power Loss Typical (W) | 5.5 |
| Weight (g) | approx. 360 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
SIMATIC DP, Connection ET 200M IM 153-2 High Feature for max. 12 S7-300 modules with redundancy capability, Timestamping suitable for isochronous mode New features: up to 12 modules can be used Slave INITIATIVE for Drive ES and Switch ES Expanded quantity structure for HART auxiliary variables Operation of the 64-channel modules 32 signals/slot
