16 mm Selector Switches
The S16SR series selector switches are ideal for installation in compact-sized equipment and panels. The 16 mm installation hole size, 29.5 mm protruding rear-length, and independent detachable contacts allow flexible installation in limited spaces. The S16SR series is available in round, square, and rectangular head types with red, blue, green, yellow, and white color options. 2-position (spring return/maintained) or 3-position (two-way spring return/right spring return/left spring return/maintained) control is possible depending on the model type.

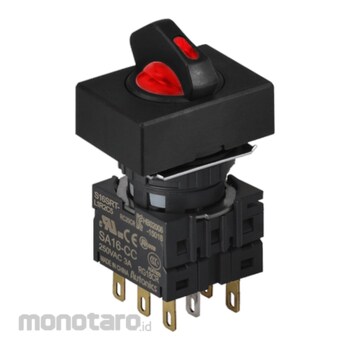

Autonics Ø16 Switches/Pilot Lights S16SR Series
#Grup produk P105166656
Kondisi Barang:
Authorized Partner
Spesifikasi
| Environment Ambient Temperature (°C) | -15 to 55; storage: -25 to 65 |
|---|---|
| Environment Ambient Humidity (%RH) | 35 to 85; storage: 35 to 85 |
| Contact Block Electrical Specification Power Voltage/Current (V/A) | 250 (3A) |
| Contact Block Mechanical Specification Terminal Soldering Time | At the end of tips Within 3 sec With 350℃(30W: soldering machine) |
| Contact Block Mechanical Specification Terminal Tensile Force (N) | 30 (Maximum) |
| Mechanical Characteristics Operation Angle (°) | Left 45; Right 45 |
| Weight Body (g) | Approx. 6.6 |
| Weight Contact Block (g) | Approx. 1.6 |
| Weight Housing (g) | Approx. 1.4 |
