Autonics Piezo Buzzers B2PB Series
#Grup produk P105166045
Kondisi Barang:
Authorized Partner
Spesifikasi
| Mounting Hole Diameter (mm) | 22/25 (compatible) |
|---|---|
| Power Supply (V) | 12-24 (DC) |
| Environment Ambient Temperature (°C) | -15 to 55; storage: -25 to 65 |
| Environment Ambient Humidity (%RH) | 35 to 85; storage: 35 to 85 |
| Body Material | Polyamide 6 |
| Cap Material | Polycarbonate |
| Operation Indicator | Red LED |
| Power Consumption (W) | 0.6 (Maximum) |
| Protection Structure | IP65 (front panel) |
| Sound Pressure Level (dB) | Approx. 98±8 (0.1m) |
| Sound Type | Continuous sound/Intermittent sound |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description

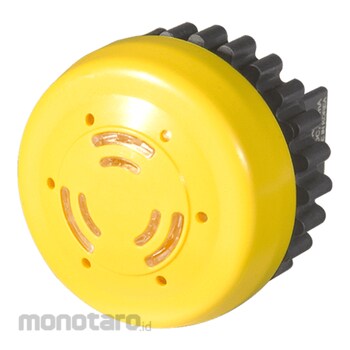

The B2PB series Ø22/25 mm piezo buzzers offer clear and loud sound up to 98 ±8 dB (at 0.1m). The buzzers also feature a green LED operation indicator and users can select between continuous or intermittent sound settings.
Warning
It is rated at power supply 24VDC. (Sound pressure may be decreased when using 12VDC.)The weight is for 10 units including. The weight in parenthesis is for a single unit.
The weight includes packaging. The weight in parenthesis is for unit only.
Environment resistance is rated at no freezing or condensation.
Products received will be in accordance with the information listed on the website.
