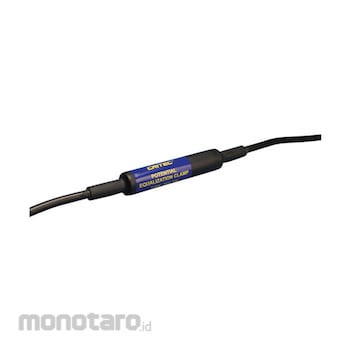

Nvent Erico Potential Equalisation Clamp
#Grup produk P105157513
Spesifikasi
| Diameter (mm) | 1: 28, 2: 16.3 |
|---|---|
| Length (mm) | 953 |
| Article Number | 702900 |
| Spark-Over Voltage at 100 V/s | 350 |
| Max. Discharge Current (Imax) | 100 kA 8/20 μs |
| Technology | Gas Discharge Tube (GDT) |
| Capacitance | 15 pF Max |
| Complies With | IEC 61643-1 Class I, Class II, IEC 62561-3 |
| Diameter 1 (Ømm) | 28 |
| Diameter 2 (Ømm) | 16.3 |
| Enclosure Rating | IP 66, IP 67 |
| Impulse Current (Iimp) (kA) | 25 (10/350μs) |
| Insulation Resistance | 1 GΩ Min |
| Temperature (°C) | -30 to -70 |
| Voltage Protection Level (Up) (V) | 800 @1,000v/µs |
