Alinco Radio Marine
#Grup produk P105064754
Sebelum PPN:
Rp2.299.900 - Rp2.999.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Spesifikasi
| Frequency Stability (ppm) | ±10 |
|---|---|
| Current Consumption (A) | 5 (Max audio output) 5.5 (TX 25W) / 1.5 (TX 1W) |
| Operating Temperature (°C) | -20 to 60 |
| Antenna Impedance (ohm) | 50 |
| Dimensions (mm) | 153x67x152 |
| Ingress Protection | IPX7 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Deskripsi

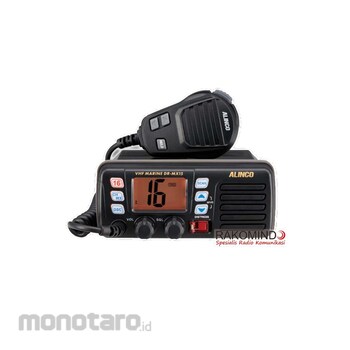

Radio Marine Alinco DR-MX15 radio terbaru dari Alinco Jepang dengan power output 25 Watt untuk digunakan di kapal
Description
Marine Radio Alinco DR-MX15 the newest radio from Alinco Japan with a power output of 25 Watt for use on board
Feature
- Ultra compact and simple to operate fixed mount VHF marine radio- 25W / 1W power selectable output
- IPX7 Watertight
- Dual-watch & Tri-watch
- DSC functions supported
- Weather Alert
- Large, bright display with alphanumeric name tags
- Position Indication on display (Optional GPS receiver require
Transmitter:
RF Output Power 25W / 1W
Modulation Type Variable Reactance
Spurious Emission S70dB
Frequency deviation ± 5KHz
Receiver:
Circuit Double-Conversion Superheterodyne
Intermediate Frequencies 1st: 21.7 MHz 2nd: 450 kHz
Sensitivity 0.22µV (12 dB SINAD)
Adjacent Channel Selectivity 70 dB
Intermodulation response 70 dB
Audio Output (External speaker) 4.5W (4 ▲ 10% THD)
Supply Accecories:
DC cable (ADUA98)
Mounting bracket & hardware fixing
Microphone hanger
