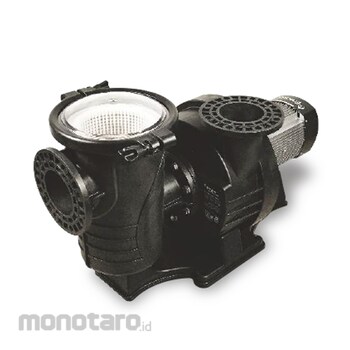

Emaux Hydraulic Power Commercial Pump (Pompa Kolam Renang)
#Grup produk P105064286
Sebelum PPN:
Rp32.999.900 - Rp67.999.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Spesifikasi
Voltage (V) | 380 |
---|---|
Frequency (Hz) | 50 |
Phase | 3 |
Connection Size (inch) | 4 |
Pole | 2 |
Pilih jenis produk yang diinginkan
Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
---|---|---|---|---|
Loading... |
Informasi Produk
Description
Hydrau-Power Commercial Pump
EXCELLENT RESISTANCE TO SEAWATER CORROSION
The Emaux Hydrau-Power pump is a series of powerful and robust pumps engineered for applications requiring high flow capability and efficiency. The pump is constructed with high strength and corrosion resistant thermoplastic materials and equipped with a large capacity strainer. The Hydrau-Power pump is suitable for a variety of different applications includes all types of commercial pools, aquatic parks, and seawater facilities.
1. High volume self-priming plastic pump ideal for large filtration system
2. Smooth throat volute design provides high hydraulic efficiency of 85%
3. Fiber reinforced plastic casing provides substantial temperature, pressure, vibration and impact performance.
4. Secondary seal chamber as water leakage and vaporize blocker to the motor.
5. Large suction-side detachable strainer capacity in 13 and 30 Liter.
6. Premium Efficiency IE3 Class Motor (compliance IEC 60034-30)
7. Francis-vane impeller allows for broadband efficiency and large flow region.
8. Low noise level up to 68dB
EXCELLENT RESISTANCE TO SEAWATER CORROSION
The Emaux Hydrau-Power pump is a series of powerful and robust pumps engineered for applications requiring high flow capability and efficiency. The pump is constructed with high strength and corrosion resistant thermoplastic materials and equipped with a large capacity strainer. The Hydrau-Power pump is suitable for a variety of different applications includes all types of commercial pools, aquatic parks, and seawater facilities.
1. High volume self-priming plastic pump ideal for large filtration system
2. Smooth throat volute design provides high hydraulic efficiency of 85%
3. Fiber reinforced plastic casing provides substantial temperature, pressure, vibration and impact performance.
4. Secondary seal chamber as water leakage and vaporize blocker to the motor.
5. Large suction-side detachable strainer capacity in 13 and 30 Liter.
6. Premium Efficiency IE3 Class Motor (compliance IEC 60034-30)
7. Francis-vane impeller allows for broadband efficiency and large flow region.
8. Low noise level up to 68dB
Feature
- Motor: Premium Efficiency IE3 Class Motor- Working Voltage: 380Vac 50Hz, 3 Phase
400/690Vac 50Hz, 3 phase*
400/690Vac 60Hz, 3 phase*
- Design Methodology: Advanced computer 3D
design modelling for CFD analysis
- Design Reference (Applicable only): ISO 5199 : 2002
- Operation Pressure: 0-2 bar 25°C to 35°C
- Temperature Range: 0°C to 45°C (Water)
0°C to 45°C (Ambient)
- Water Proof: IP55
- Flow Rate: Up to 280m3
/h
- Differential Head: Up to 22m
- Speed: 2 pole up to 2850 rpm / 4 pole up to 1450 rpm
- Insulation System: Class F
- Flange Standard: DIN (PN10) / ANSI (Class150)
