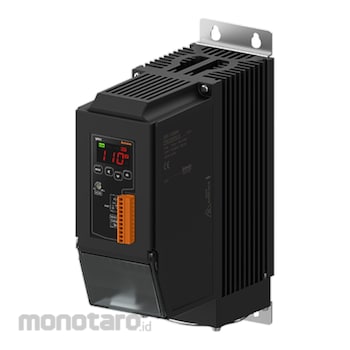

Autonics Power Controllers SPR1 Series
#Grup produk P105022396
Kondisi Barang:
Authorized Partner
Sebelum PPN:
Rp2.599.900 - Rp6.799.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Spesifikasi
| Control Phase | Single-phase |
|---|---|
| Power Supply (V) | 100-240 (AC)/(50/60Hz) |
| Accessories | 11-pin connector |
| Applied Load | - Phase control, ON/OFF control: resistance load, inductive load - Cycle control: resistance load |
| Control Input | - Auto control: DC4-20mA, 1-5VDC , ON/OFF contact (no-voltage input), pulse voltage (5-12VDC ) - Manual control: outside adjuster (10k impendansi), inside adjuster (output limit) |
| Dielectric Strength (V) | 2.000 (50/60Hz) for 1 min (between input terminals and power terminals) |
| Digital Inputs | RUN/STOP switching, AUTO/MAN switching, RESET |
| Environment Ambient Humidity (%RH) | 35 to 85; storage: 35 to 85 |
| Environment Ambient Temperature (°C) | -10 to 55; storage: -20 to 80 |
| Function | Output Limit (OUT ADJ); AUTO/MAN Selection; Control Method Selection |
| Indicator | Operation indicator/manual control indicator: green LED, Alarm indicator/output indicator/unit (V, A) indicator: red LED |
| Insulation Resistance (ohm) | Over 200M (at 500VDC megger) |
| Memory Protection | 10 years (non-volatile semiconductor memory type) |
| Min. Load Current (A) | 1 |
| Noise Immunity (kV) | ±2 (the square wave noise (pulse width: 1us) by the noise simulator) |
| Output Alarm | 250VAC~ 3A, 30VDC 3A, 1c resistive load |
| Output Leakage Current | 10mArms |
| Setting Type | By front keys, by communication |
| Vibration (mm) | 0.75 amplitude at frequency of 5 o 55Hz (for 1 min) in each X, Y, Z direction for 2 hours |
| Vibration Malfunction (mm) | 0.5 amplitude at frequency of 5 to 55Hz in each X, Y, Z direction for 10 min |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
The SPR1 series single-phase power controllers are ideal for installation in limited spaces with slim body sizes measuring only 55 mm wide. The LED display allows real-time monitoring of control input, load voltage, load current, load power, load resistance, and heat-sink temperature. The controllers feature phase control, cycle control, and ON/OFF control methods, with feedback control (constant current, constant voltage, constant power) option available for accurate and stable power control.
Feature
- Slim and elegant design.- LED display allows real-time monitoring of control input, load voltage, load current, load power, load resistance, and heat-sink temperature.
- Stable control with feedback control (constant current, constant voltage, constant power).
- Communication output models available: RS485 (Modbus RTU).
- Parameter configuration via PCs (RS485): Free device management software (DAQMaster).
- Various alarm functions (alarm output) : overcurrent, overvoltage, heater disconnection, fuse break, heat-sink overheat, diode (SCR) error.
- Easy installation with mounting brackets.
- Easy fuse replacement and maintenance.
- High performance SCR (IXYS) diode.
