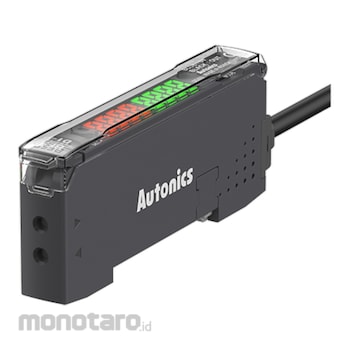

Autonics Fiber Optic Amplifiers BF5 Series
#Grup produk P105022235
Kondisi Barang:
Authorized Partner
Sebelum PPN:
Rp1.299.900 - Rp1.599.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Spesifikasi
| Accessories | Connector type wire(Ø4mm, 3-wire, 2m)(AWG22, core diameter: 0.08mm, number of cores: 60, insulator out diameter: Ø1.25mm), Side connector |
|---|---|
| Ambient Humidity (% RH) | 35 to 85, storage: 35 to 85 |
| Ambient illumination (lx) | Sunlight: Max. 11,000, Incandescent lamp: Max. 3,000 (received illumination) |
| Ambient Temperature (°C) | -10 to 50, storage: -20 to 70 |
| Current Consumption (mA) | Max. 50 |
| Display Method | 4-digit 7-segment LED |
| Communication | I2C(max. 8 units) |
| Material | Case: Polybutylene terephthalate, Cover: Polycarbonate |
| Mutual Interference Prevention | Max. 8 unit sets (automatically set regardless of response time) |
| Operation Mode | Light ON/Dark ON(set by parameter) |
| Power Supply (V) | DC 12-24 ±10%(ripple P-P: max. 10%) |
| Protection Structure | IP40 |
| Sensitivity Adjustment | Manual Teaching(auto-tuning, 1-point, 2-point, positioning) ※ In multiple connection, batch teaching available |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
The BF5 series fiber optic amplifiers are available in single and dual display models. The units feature 5 different response speed settings, for flexible and reliable detection of fast moving targets or small objects. With integrated mutual interference prevention, reliable detection is possible with multiple units (up to 8 units) with connection using side connectors. Other features include saturation prevention function, inverted display, and simple sensitivity adjustment settings. Red, green, and blue LED light source models are available for diverse applications.
