Uses polyurethane resin. It has excellent flexibility.
It has excellent mechanical strength, especially abrasion resistance.
Has excellent heat resistance, cold resistance, and oil resistance.
Very lightweight.
SPH type.

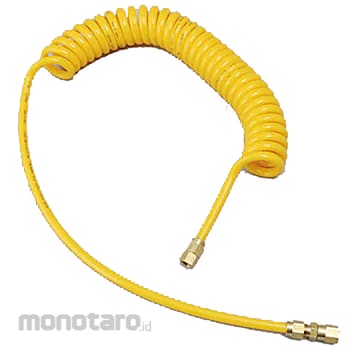

CHIYODA Spiral Air Hose Line Series
#Grup produk P105021786
Spesifikasi
| Internal capacity | 1 |
|---|---|
| Range of Use (mm) | 4000 |
| Inner Diameter (Φmm) | 6.5 |
| Inner diameter x outer diameter (Φmm) | 6.5x10 |
| Total Length (mm) | 5000 |
| Maximum Working Pressure (MPa) | 0.8 |
| Operating Temperature Range (°C) | -5 to 60 (23 to 140 ° F) |
| Length L (mm) | 5000 |
| Dimension A (mm) | 1000 |
| Outer Diameter (φmm) | 10 |
| Dimensions d (mm) | 100 |
| Dimension E (mm) | 52 |
| Dimension B (mm) | 500 |
| Dimension C (mm) | 400 |
| Breaking Pressure (MPa) | 3 |
| Fluid Used | Compressed air |
| Hose Fitting | G1/4 |
| Material (Mounting Bracket) | copper |
| TRUSCO Number | 808-4252 |
