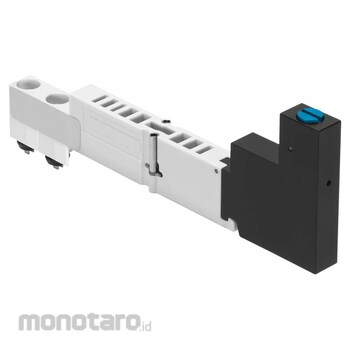

FESTO Vertical Pressure Shut-off Plate VMPA Series
#Grup produk P104943287
Spesifikasi
| Width (mm) | 10 |
|---|---|
| Type Code | VMPA |
| Mounting Position | Any |
| Pneumatic vertical stacking | Shut-off for 1 |
| Symbol | 991889 |
| Operating Pressure (bar) | 3 - 8 |
| Ambient Temperature (°C) | -5 - 50 |
| Corrosion Resistance Class (CRC) | 2 - Moderate corrosion stress |
| Degree of Protection | IP65 |
| Housing Material | PA-reinforced Wrought aluminum alloy |
| Information on Operating and Pilot Media | Operation with oil lubrication possible (required for further use) |
| Note on Materials | RoHS-compliant |
| Operating Medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Standard Nominal Flow Rate Exhaust Air (L/minute) | 213 |
| Standard Nominal Flow Rate Pressurization (L/minute) | 103 |
| Vertical stacking Mounting Type | On manifold sub-base On individual sub-base |
