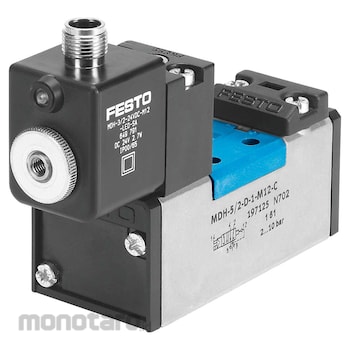

FESTO Air Solenoid Valve MDH Series
#Grup produk P104942376
Spesifikasi
| Valve Function | 5/2, monostable |
|---|---|
| Lap | Overlap |
| Actuation Type | Electrical |
| Width (mm) | 42 |
| Standard Nominal Flow Rate (L/minute) | 1200 |
| Pneumatic working port | Sub-base, size 1 as per ISO 5599-1 G1/4 |
| Conforms to Standard | ISO 5599-1 |
| Degree of Protection | IP65 |
| Design | Piston gate valve |
| Exhaust air Function | With flow control option |
| ISO Code | 169 |
| Manual override | Non-detenting |
| Mounting Position | Any |
| Nominal Width (mm) | 8 |
| Operating Pressure (bar) | -0.9 - 16 |
| Operating Voltage (V) | 24 DC |
| Reset Method | Mechanical spring |
| Sealing Principle | Soft |
| Type Code | MDH |
| Width Dimension (mm) | 43 |
