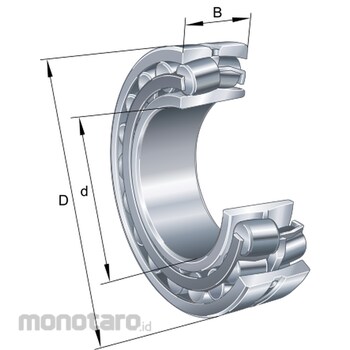

FAG Spherical Roller Bearings Series BE-XL-K30
#Grup produk P104846425
Spesifikasi
| Y0 | 2.28 |
|---|---|
| Y1 | 2.33 |
| Y2 | 3.47 |
| D2 (mm) | 134.5 |
| C0r (N) | 690000 |
| Cr (N) | 450000 |
| Cur (N) | 86000 |
| D1 (mm) | 159.8 |
| E | 0.29 |
| Inner Diameter d (mm) | 120 |
| Outer Diameter d (mm) | 180 |
| Reference Speed | 2360 |
| Width B (mm) | 60 |
| da min (mm) | 128.8 |
| ds (mm) | 3.2 |
| m (kg) | 5.4 |
| nG (1/minute) | 3450 |
| ns (mm) | 6.5 |
| r min (mm) | 2 |
| ra max (mm) | 2 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Spherical roller bearings are part of the group of radial roller bearings. These self-retaining rolling bearings have two rows of rollers with a mutually curved raceway in the outer ring and two raceways inclined relative to the bearing axis in the inner ring. This raceway design allows these bearings to combine a range of characteristics, which are essential to many applications, in one bearing, such as angular adjustability for example. The symmetrical barrel rollers are guided by brass, sheet steel or polyamide cages
Warning
40424024-BE-XL-K30Feature
Main dimensions to DIN 635-2, with tapered bore, taper 1:30Ulasan Produk
