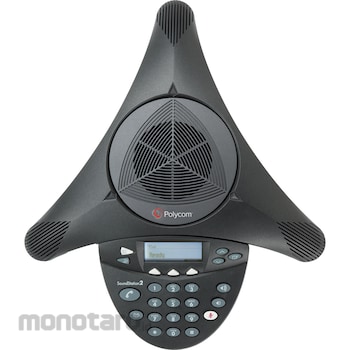

Polycom Soundstation 2

ANALOG CONFERENCE PHONE FOR UP TO 10 PEOPLE.
- Hear and be heard clearly.
- Simple to use.
- Easy installation and management.
MAKE A BIG IMPACT IN SMALL SPACES.
- The SoundStation2 analog conference phone is ideal for small and medium rooms seating up to 10 people, delivering exceptional performance and voice quality for clearer and more productive meetings.
ARCHITECTURE.
- Tabletop console contains audio processing functions and keypad. Wall module contains power and telephone line interfaces.
- Cables consist of 21 ft (6.4m) single-cord connection to tabletop console and 7 ft (2.1m) connection to RJ-11 telephone jack. Optional Extended microphone modules connect to console via 8 ft. (2.4m) cables.
CONSOLE SPECIFICATIONS.
- Network interface : Two-wire RJ-11 analog PBX or public switched telephone network interface.
- User interface*.
- User selectable ring tones.
- Configurable soft keys for easy dialing of voice conferencing services.
- Multi-lingual support: English, German, French, Italian, Spanish, Portuguese, Norwegian.
- Password protected configuration settings for administrators.
- Caller ID and phone book*.
- Support for multiple Caller ID standards**: Bellcore Type 1 (requires a telephone company subscription for activation), ETSI, DTMF, British Telecom.
- Phone book/speed dial list - up to 25 entries*.
* Not available on all models.
** Due to the diversity of Caller ID standards, some features may not be available in all areas. In addition, the quality of the telephone line connection may affect Caller ID functionality. Caller ID service may require a subscription from a service provider in your area.
KEYPAD.
- 12-key telephone keypad.
- On-hook/off-hook, conference, mute, volume up/down keys, menu, navigation keys*.
- 3 context sensitive soft keys* including redial, hold, programmable conference key.
CONSOLE LOUDSPEAKER.
- Volume: adjustable to 94 dBA SPL (peak) volume at 0.5 meters.
CONSOLE MICROPHONES.
- 3 cardioid microphones 300 to 3500Hz.
AUDIO.
- Polycom Acoustic Clarity full duplex - IEEE 1329.
- Type 1.
- Up to 10 ft. microphone pick-up range.
- Gated microphones with intelligent microphone mixing.
- Dynamic noise reduction.
INTERFACES.
- 2 EX microphone connections*.
- Applications Port* for connection to other communication devices such as mobile phones*** and computers.
- RCA Auxiliary audio jack.
*Not available on all models.
***SoundStation2 uses a cable that connects to a standard 2.5mm headset connector. If your mobile phone model does not support this type of connection you will need an adapter (not included). Connecting the SoundStation2 to a mobile phone is analogous to connecting a headset to a mobile phone. Not all mobile phone models recognize the SoundStation2 as a headset. For a list of mobile phones that are known to work with SoundStation2, please consult www.polycom.com.
ACCESSORIES.
- 2 cardioid extension microphones 300-3500Hz (for EX model only).
REGULATORY COMPLIANCE.
- NA Cl/C-UL.
- FCC Part 68.
- FCC Part 15 Class B.
- Canadian ICES-003.
- CE Mark (R & TTE Directive).
- VCCI Class B (Japan).
SOUNDSTATION2 SHIPS WITH:
- Tabletop phone console.
21 ft. (6.4m) cord to console.
7 ft. (2.1m) telco cable to RJ-11 telephone jack.
- User documentation (user guide CD, quick installation guide, registration card).
