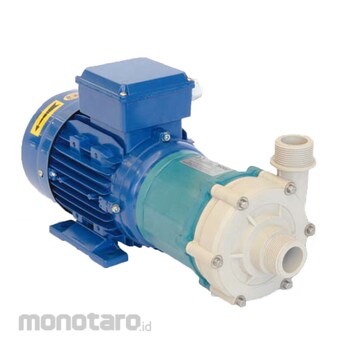

ARGAL Thermoplastic Centrifugal Pump TMP Series
#Grup produk P104619478
Sebelum PPN:
Rp11.999.900 - Rp43.999.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Spesifikasi
| Phase | 3 |
|---|---|
| Frequency (Hz) | 50 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
PRIMA Range (TMP). This magnetic drive range of pumps consists entirely of centrifugal, horizontal access, close coupled pumps. The TMP is the upgrade of the previous AM range. The materials of construction for the outer casing and wetted area are reinforced thermo-plastics while the internal mechanical components are made from ceramics. This prevents any metallic components from coming into contact with the pump fluid. This combination of materials was chosen so as to obtain the best performance possible from a small scale chemical pump.
Feature
Include Motor 3Ph-400V-50Hz. - Medium duty chemical transfer pumps. - 240VAC Single Phase 2 pole splashproof or 415VAC 3 Phase TEFC IP55 motors. - BSP Threaded or ANSI flange connections. - 0-60°C Temperature range. - Max 1.35 SG with PP liquid end or 1.8 SG with CTFE liquid end. - Up to 30% Acid or Alkaline Applications (0-80DegC) with standard PP liquid end. - Optional CTFE liquid end for greater chemical compatibility and temp range (0-100°C). - Viton or EPDM O-ring.Ulasan Produk
