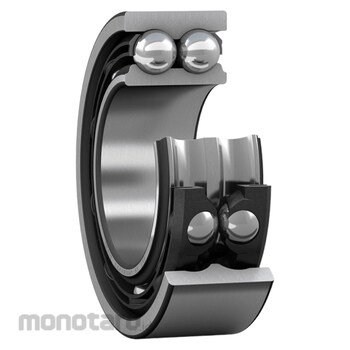

SKF ATN9 Type Double Row Angular Contact Ball Bearings
#Grup produk P104079281
Spesifikasi
| Coating | Without |
|---|---|
| Number of Rows | 2 |
| Sealing | Without |
| Cage | Non-metallic |
| Lubricant | None |
| Arrangement of Contact Angle (double-row bearing) | Back-to-back (O) |
| Axial Internal Clearance | CN |
| Bearing Material | Bearing steel |
| Contact Angle (°) | 30 |
| Contact Type | Normal contact (two-point contact) |
| Limiting Value (e) | 0.8 |
| Locating Feature, Bearing Outer Ring | None |
| Matched Arrangement | No |
| Relubrication Feature | Without |
| Ring Type | One-piece inner and outer rings |
| Universal Matching Bearing | No |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Double row angular contact ball bearings correspond, in their design and operation, to a pair of single row angular contact ball bearings in a back-to-back arrangement, while requiring less axial space. They can operate at high speeds and are more suitable than deep groove ball bearings for supporting large axial forces in both directions.
Warning
Image may differ from product. See technical specification for details.Feature
- High-speed capability- Accommodate relatively high radial loads, high axial loads in both directions and tilting moments
- Suitable where a stiff bearing arrangement is required
- Require less axial space than equivalent pair of single row angular contact ball bearings
