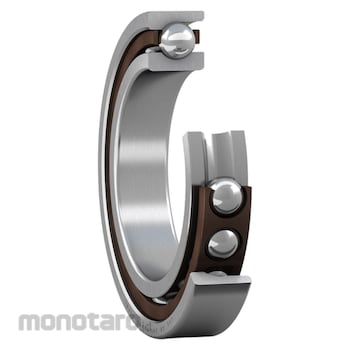

SKF CDGB/P4A Type Super Precision Single Row Angular Contact Ball Bearing
#Grup produk P104079184
Sebelum PPN:
Rp3.599.900 - Rp9.999.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Spesifikasi
| Coating | Without |
|---|---|
| Number of Rows | 1 |
| Design | High-capacity D |
| Sealing | Without |
| Lubricant | None |
| Bearing Material | Bearing steel |
| Contact Angle (°) | 15 |
| Contact Type | Normal contact (two-point contact) |
| Correction Factor Dependent On Contact Angle f1 | 1 |
| Correction Factor For Hybrid Bearings fHC | 1 |
| Correction Factor, Preload Class B f2B | 1.01 |
| Matched Arrangement | No |
| Matched Condition (axial clearance/preload) | Measuring load, class B |
| Preload Class | B |
| Ring Type | One-piece inner and outer rings |
| Tolerance Class | P4A |
| Universal Matching Bearing | Yes, back-to-back (<>), face-to-face (><) or tandem (>>) |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
These super-precision, high-capacity, single row angular contact ball bearings accommodate radial and axial loads acting simultaneously, where the axial load acts in one direction only. They are designed to accommodate heavy loads at relatively high speeds under low to moderate operating temperatures. Being universally matchable, they can be used together in arrangements to provide effective load sharing, within a predetermined preload range, without the use of shims or similar devices.
Warning
Image may differ from product. See technical specification for details.Feature
- Very high running accuracy- Very high load carrying capacity
- Relatively high speed and stiffness
- Universally matchable
