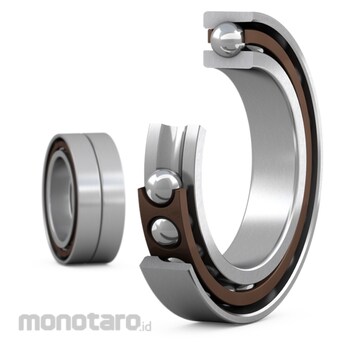

SKF ACD/P4ADGB Type Two Super Precision Angular Contact Ball Bearings
#Grup produk P104079078
Sebelum PPN:
Rp5.299.900 - Rp27.999.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Spesifikasi
| Coating | Without |
|---|---|
| Number of Rows | 2 |
| Design | High-capacity D |
| Sealing | Without |
| Lubricant | None |
| Axial Load Factor (back-to-back, face-to-face) Y0 | 0.76 |
| Axial Load Factor (back-to-back, face-to-face) Y1 | 0.92 |
| Axial Load Factor (back-to-back, face-to-face) Y2 | 1.41 |
| Axial Load Factor (single, tandem) Y0 | 0.38 |
| Axial Load Factor (single, tandem) Y1 | 0 (zero) |
| Axial Load Factor (single, tandem) Y2 | 0.87 |
| Bearing Material | Bearing steel |
| Contact Angle (°) | 25 |
| Contact Type | Normal contact (two-point contact) |
| Correction Factor For Hybrid Bearings fHC | 1 |
| Matched Arrangement | Universal matching |
| Matched Condition (axial clearance/preload) | Light preload |
| Number of bearings in matched set | 2 |
| Preload Class | B |
| Radial Load Factor (back-to-back, face-to-face) X0 | 1 |
| Radial Load Factor (back-to-back, face-to-face) X1 | 1 |
| Radial Load Factor (back-to-back, face-to-face) X2 | 0.67 |
| Radial Load Factor (single, tandem) X0 | 0.5 |
| Radial Load Factor (single, tandem) X1 | 1 |
| Radial Load Factor (single, tandem) X2 | 0.41 |
| Ring Type | One-piece inner and outer rings |
| Tolerance Class | P4A |
| Universal Matching Bearing | Yes, back-to-back (<>), face-to-face (><) or tandem (>>) |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
These matched sets of two super-precision, high-capacity, D design, single row angular contact ball bearings are available in a variety of arrangements. They are designed for high-load capacity and relatively high speed operation and, compared to the equivalent SKF B and E design high-speed bearings, are best suited for heavier loads.
Warning
Image may differ from product. See technical specification for details.Feature
- Very high running accuracy- Very high load carrying capacity
