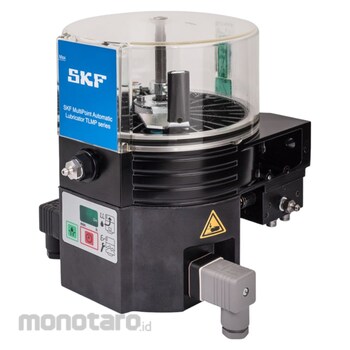

SKF MultiPoint Automatic Lubricator TLMP series The SKF MultiPoint Automatic Lubricator TLMP series is intended for reliable relubrication of multiple lubrication points. This sturdy automatic lubrication system is packaged as a complete kit, including the lubricator, required tubing and connectors. Designed to supply from one to eighteen lubrication points, the TLMP series features pluggable outlets and is easy to install and program via its keypad with LED display. TLMP series advantages
- Easy to install and program
- Complete kit
- Suitable for one to eighteen lubrication points
- Low-level and malfunction alarms; remote notification possible
- Machine steering by removing power
- Available in versions with different voltages
- Developed for industrial applications, as well as agricultural and off-road vehicles Featuring a reservoir capacity of nearly one litre, this versatile lubricator has a stirring paddle to prevent grease separation, making it suitable for more lubricants. With its high IP protection rating, the durable TLMP series is vibration resistant, withstands equipment washdowns and prevents contamination ingress. Also, the unit enables machine steering to temporarily disable lubrication by removing power.
SKF Pelumas Otomatis Multipoint
#Grup produk P104068212
Sebelum PPN:
Rp24.999.900 - Rp33.999.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Spesifikasi
| Alarms | Yes, blocked feed lines, empty reservoir. Internal and external |
|---|---|
| Ambient Temperature Range (°C) | -25-70 |
| Degree of Protection (IP) | IP 67 |
| Dimensions (WxLxH) (mm) | 237x214x231 |
| Dispense Rate Range (ml/d) | 0.1-40 |
| Drive Mechanism | Electro mechanical (machine steered) |
| Electric Connection | DIN 43650/A (EN 175301-803) |
| External Steering | Yes |
| Highest Dispense Setting (ml/d) | 40 |
| Housing Material | Metal |
| Lowest Dispense Setting (ml/d) | 0.1 |
| Maximum Feed Line Length (mm) | 5000 |
| Maximum Pressure (MPa) | 20.5 |
| Maximum Pressure (bar) | 205 |
| Mounting Position | Vertical |
| Power Source | Electric (external) |
| Reservoir Volume (ml) | 1000 |
| Suitable Grease Consistency | NLGI 2, 3 |
| Type | Multipoint lubricator |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Warning
Image may differ from product. See technical specification for details.Feature
- Easy to install and program- Complete kit
- Suitable for up to 8 lubrication points
- Low-level and malfunction alarms, remote notification possible
- Machine steering capable
- Developed for industrial applications, as well as agricultural and off-road vehicles
