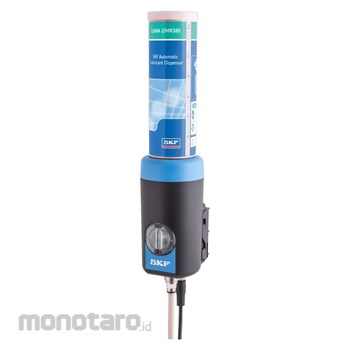

SKF Automatic Lubricant Dispenser
#Grup produk P104056916
Sebelum PPN:
Rp3.099.900 - Rp3.899.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Spesifikasi
| Ambient Temperature Range (°C) | -25-70 |
|---|---|
| Connecting Thread | G 1/4 |
| Degree of Protection (IP) | DIN EN 60529: IP 67, DIN 40 050-9: IP 6k9k |
| Drive Mechanism | Electro mechanical |
| Highest Dispense Setting 120ml Cartridge (ml/d) | 3.9 |
| Highest Dispense Setting 380ml Cartridge (ml/d) | 12.5 |
| LED Indicator | Green LED (every 8 sec): OKGreen and red LED (every 8 sec): Almost emptyRed LED (every 8 sec): Error |
| Lowest Dispense Setting 120ml Cartridge (ml/d) | 0.16 |
| Lowest Dispense Setting 380ml Cartridge (ml/d) | 0.5 |
| Maximum Feed Line Length (m) | 5 |
| Maximum Pressure (bar) | 30 |
| Nominal Emptying Time (month) | User adjustable: 1, 2, 3, 6, 9, 12, 18 and 24 or purge |
| Purge Setting (ml) | 31 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
TLMR is filled with SKF LGWA 2 grease for wide temperature ranges and extreme pressures, recommended for electric motors, conveyors, fans and pumps. With a relatively high pressure, SKF TLMR can operate at long distances and provide optimum results with difficult-to-reach and unsafe lubrication points. Its robust design makes them suitable for operating in a wide temperature range in presence of vibrations. Powered by batteries or 12-24 V DC, and delivered with or without grease.
Warning
Image may differ from product. See technical specification for details.Feature
- Flexible temperature independent dispense rate from 1 to 24 months- Available cartridges of 120 and 380 ml of SKF grease
- Maximum discharge pressure of 30 bars (435 psi) during the dispensing period
- Wide temperature range
