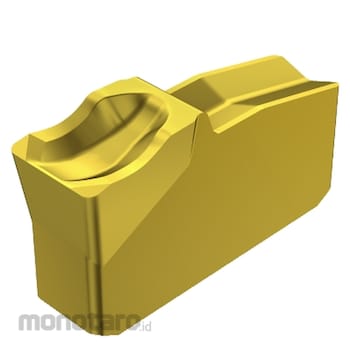

Sandvik Insert 235
#Grup produk P104026687
Spesifikasi
| Chip width (mm) | 6 |
|---|---|
| Clearance angle major (AN) (°) | 7 |
| Coating | CVD TICN+TIN |
| Corner radius left (REL) (mm) | 0.4 |
| Corner radius lower tolerance (RETOLL) (mm) | -0.1 |
| Corner radius right (RER) (mm) | 0.4 |
| Corner radius upper tolerance (RETOLU) (mm) | 0.1 |
| Cutting edge count (CEDC) | 1 |
| Cutting width (CW) (mm) | 6 |
| Cutting width lower tolerance (CWTOLL) (mm) | 0 |
| Cutting width upper tolerance (CWTOLU) (mm) | 0.25 |
| Grade | 235 |
| Hand | N |
| Insert mounting style code (IFS) | 7 |
| Insert seat size code (SSCM) | 60 |
| Insert size and shape | Q-Cut 151.2 -size 60 |
| Machine side body angle (BAMS) (°) | 0 |
| Sensor embedded property (SEP) | 0 |
| TRUSCO Number | 136-4421 |
| Weight of item (WT) (kg) | 0.008 |
