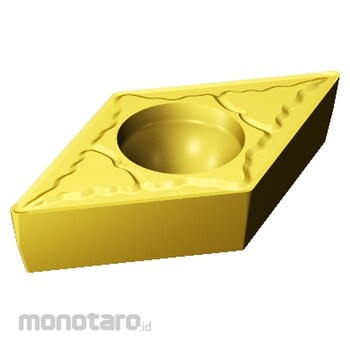

Sandvik Insert DPMT-KM
#Grup produk P104024980
Spesifikasi
| Chip breaker | Single side |
|---|---|
| Hole Shape | Some cylindrical holes One side 40 degrees to 60 degrees |
| Inscribed Circle Diameter (phi mm) | 6.35 |
| Shape | Rhombus 55 degrees |
| Thickness Tolerance (mm) | +/-0.13 |
| Corner Height Tolerance (mm) | +/-0.08 to +/-0.18 |
| Clearance Angle (degree) | 11 |
| Corner Radius (mm) | 0.4 |
| Cutting Edge Length (mm) | 7.8 |
| Inscribed Circle Tolerance (mm) | +/-0.05 to +/-0.13 |
| Material | H13A |
| Nose Radius r (mm) | 0.4 |
| Presence or absence of holes | Yes |
| Thickness (mm) | 2.38 |
