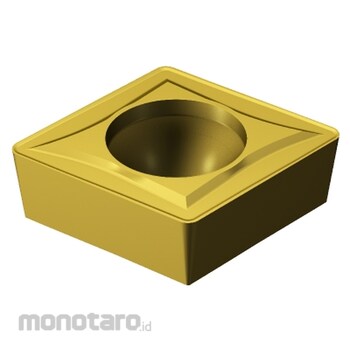

Sandvik Insert CCMT09T308-UR
#Grup produk P104023200
Spesifikasi
| Chip breaker | Single side |
|---|---|
| Inscribed Circle Tolerance (mm) | +/-0.05 to +/-0.13 |
| Corner Height Tolerance (mm) | +/-0.08 to +/-0.18 |
| Clearance Angle (degree) | 7 |
| Cutting Edge Length (mm) | 9.7 |
| Inscribed Circle Diameter (phi mm) | 9.525 |
| Corner Radius (mm) | 0.8 |
| Hole Shape | Some cylindrical holes One side 40 degrees to 60 degrees |
| Material | 235 |
| Presence or absence of holes | Yes |
| Shape | Rhombus 80 degrees |
| Thickness (mm) | 3.97 |
| Thickness Tolerance (mm) | +/-0.13 |
