Sandvik Holder A25T
#Grup produk P104021141
Spesifikasi

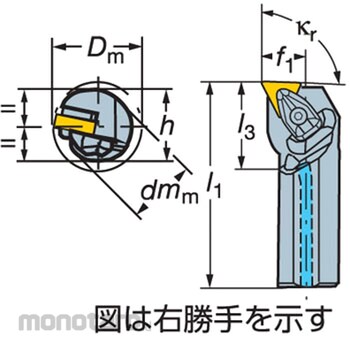

| Dimension L3 (mm) | 32 |
|---|---|
| Dimension L1 (mm) | 300 |
| Cutting angle Kr (degrees) | 91 |
| Minimum Processing Diameter Dm (phi mm) | 32 |
| Compatible Tip | Equilateral triangle 60 degrees |
| Cutting Edge Length (mm) | 16.5 |
| Clamp System | Top and hole clamp (RC) |
| Dimension F1 (mm) | 17 |
| Dimension H (mm) | 23 |
| Dimension gamma (degrees) | -6 |
| Dimension lamadas (degrees) | -12 |
| Dimensions dmm (mm) | 25 |
| Gauge tip | TNMG 16 04 08 |
| Hand | left |
| Shank | Steel shank with oil hole |
| Shank Diameters d (mm) | 25 |
| TRUSCO Number | 601-4518 |
| Tightening Torque (N m) | 1.7 |
| Tip Clearance Angle (Degrees) | 0 |
