Sandvik Holder A40VM
#Grup produk P104016334

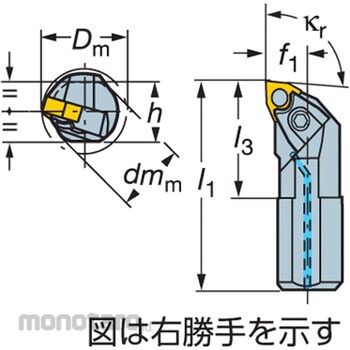

Spesifikasi
| Dimension F1 (mm) | 27 |
|---|---|
| Dimension gamma (degrees) | -6 |
| Gauge tip | WNMG 08 04 08 |
| Cutting Edge Length (mm) | 8.7 |
| Minimum Processing Diameter Dm (phi mm) | 50 |
| Clamp System | Top and hole clamps |
| Compatible Tip | Hexagon 80 degrees |
| Cutting angle Kr (degrees) | 95 |
| Dimension H (mm) | 37 |
| Dimension L1 (mm) | 400 |
| Dimension L3 (mm) | 56 |
| Dimension lamadas (degrees) | -12 |
| Dimensions dmm (mm) | 40 |
| Shank | Steel shank with oil hole |
| Shank Diameters d (mm) | 40 |
| Tip Clearance Angle (Degrees) | 0 |
