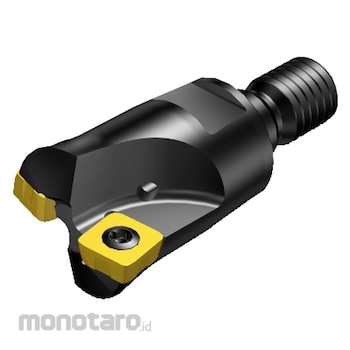

Sandvik End Mill R210
#Grup produk P104003190
Spesifikasi
| Functional length (LF) (mm) | 50 |
|---|---|
| Connection diameter (DCON) (mm) | 28.8 |
| Coolant entry style code (CNSC) | 1: axial concentric entry |
| Hand | R |
| Coolant Pressure (CP) (bar) | 10 |
| Body diameter (BD) (mm) | 38.96 |
| Body length (LB) (mm) | 50 |
| Body material code (BMC) | Steel |
| Clamping type code (MTP) | S |
| Cutting diameter (DC) (mm) | 27.9 |
| Cutting item count (CICT) | 4 |
| Cutting pitch differential (CPDF) | FALSE |
| Damping property (DPC) | FALSE |
| Depth of cut maximum (APMXEFW) (mm) | 8 |
| Depth of cut maximum (APMXFFW) (mm) | 1.2 |
| Maximum cutting diameter (DCX) (mm) | 42 |
| Maximum plunge depth (AZ) (mm) | 1.8 |
| Maximum ramping angle (RMPX) (°) | 5 |
| Rotational speed maximum (RPMX) | 15,000 1/min |
| Sensor embedded property (SEP) | 0 |
| Tool cutting edge angle (KAPR) (°) | 10 |
| Torque (N m) | 3 |
| Weight of item (kg) | 0.44 |
