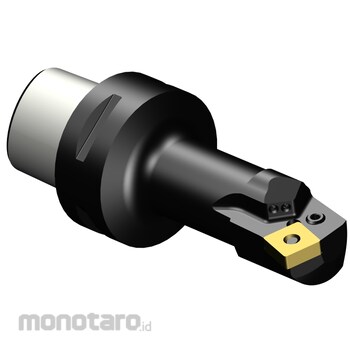

Sandvik Cutting Head C5-PSKNL
#Grup produk P104002298
Spesifikasi
| Functional length (LF) (mm) | 90 |
|---|---|
| Connection diameter (DCON) (mm) | 50 |
| Coolant entry style code (CNSC) | 3: axial concentric and radial entry |
| Hand | L |
| Coolant Pressure (CP) (bar) | 150 |
| Body diameter (BD) (mm) | 25 |
| Body material code (BMC) | Steel |
| Clamping type code (MTP) | P |
| Coolant exit style code (CXSC) | 8: decentral focused exit with nozzles |
| Damping property (DPC) | FALSE |
| Functional height (HF) (mm) | 0 |
| Functional width (WF) (mm) | 17 |
| Inclination angle (LAMS) (°) | -11 |
| Machine side body angle (BAMS) (°) | 0 |
| Master insert identification (MIIDM) | SNMG 12 04 08 |
| Maximum overhang (OHX) (mm) | 90 |
| Maximum ramping angle (RMPX) (°) | 10 |
| Minimum bore diameter (DMIN1) (mm) | 32 |
| Orthogonal rake angle (GAMO) (°) | -6 |
| Protruding length (LPR) (mm) | 93.05 |
| Sensor embedded property (SEP) | 0 |
| Tool cutting edge angle (KAPR) (°) | 75 |
| Tool lead angle (PSIR) (°) | 15 |
| Torque (N m) | 5 |
| Usable length (LU) (mm) | 61.3 |
| Weight of item (kg) | 0.662 |
| Workpiece side body angle (BAWS) (°) | 0 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Feature
Cutting unit. Coromant Capto's high accuracy, rigidity and quick change can be applied.Ulasan Produk
