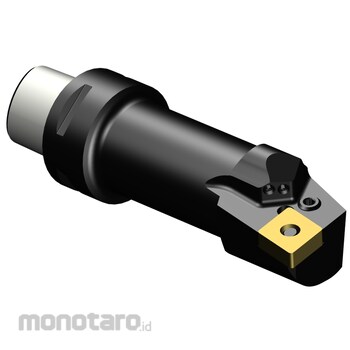

Sandvik Cutting Head C3-PCLNL
#Grup produk P104002076
Spesifikasi
| Connection diameter (DCON) (mm) | 32 |
|---|---|
| Coolant entry style code (CNSC) | 3: axial concentric and radial entry |
| Hand | L |
| Coolant Pressure (CP) (bar) | 150 |
| Coolant exit style code (CXSC) | 8: decentral focused exit with nozzles |
| Body material code (BMC) | Steel |
| Clamping type code (MTP) | P |
| Damping property (DPC) | FALSE |
| Functional height (HF) (mm) | 0 |
| Inclination angle (LAMS) (°) | -11 |
| Machine side body angle (BAMS) (°) | 0 |
| Master insert identification (MIIDM) | CNMG 12 04 08 |
| Maximum ramping angle (RMPX) (°) | 0 |
| Orthogonal rake angle (GAMO) (°) | -6 |
| Sensor embedded property (SEP) | 0 |
| Tool cutting edge angle (KAPR) (°) | 95 |
| Tool lead angle (PSIR) (°) | -5 |
| Torque (N m) | 5 |
| Workpiece side body angle (BAWS) (°) | 0 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Feature
Cutting unit. Coromant Capto's high accuracy, rigidity and quick change can be applied.Ulasan Produk
