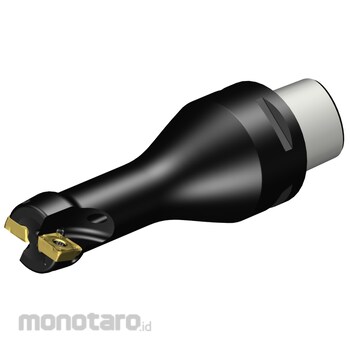

Sandvik Cutter 490
#Grup produk P104001989
Spesifikasi
| Body material code (BMC) | Steel |
|---|---|
| Depth of cut maximum (APMXFFW) (mm) | 5.5 |
| Centre cutting capability (CCC) | FALSE |
| Coolant Pressure (CP) (bar) | 10 |
| Cutting item count (CICT) | 2 |
| Body length (LB) (mm) | 40 |
| Clamping type code (MTP) | S |
| Coolant entry style code (CNSC) | 3: axial concentric and radial entry |
| Cutting diameter (DC) (mm) | 20 |
| Cutting item count (CICTTOT) | 2 |
| Cutting pitch differential (CPDF) | FALSE |
| Damping property (DPC) | FALSE |
| Depth of cut maximum (APMXPFW) (mm) | 5.5 |
| Hand | R |
| Maximum plunge depth (AZ) (mm) | 0 |
| Maximum ramping angle (RMPXFFW) (°) | 0 |
| Sensor embedded property (SEP) | 0 |
| Standard number (STDNO1) | ISO26623-1 |
| Tool cutting edge angle (KAPR) (°) | 90 |
| Torque (N m) | 1.2 |
| Usable length (LU) (mm) | 40 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
For titanium alloy machining, side turning, grooving, Coromant Capto
Feature
Long edge cutter exclusively for titanium alloy. High rigidity precision lock system. Good surface roughness with few chip steps.Ulasan Produk
