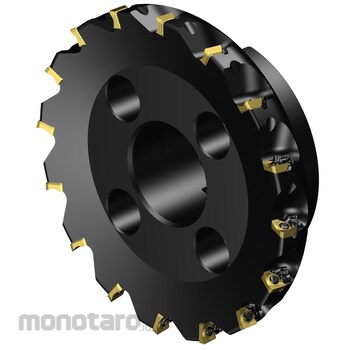

Sandvik Cutter R590
#Grup produk P104001837
Sebelum PPN:
Rp50.999.900 - Rp55.999.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Spesifikasi
| Functional length (LF) (mm) | 63 |
|---|---|
| Connection diameter (DCON) (mm) | 60 |
| Coolant entry style code (CNSC) | 0: without coolant |
| Hand | R |
| Cutting diameter (DC) (mm) | 200 |
| Centre cutting capability (CCC) | FALSE |
| Clamping type code (MTP) | S |
| Cutting item count (CICT) | 16 |
| Cutting item count (CICTTOT) | 16 |
| Cutting pitch differential (CPDF) | FALSE |
| Damping property (DPC) | FALSE |
| Depth of cut maximum (APMXFFW) (mm) | 11 |
| Depth of cut maximum (APMXPFW) (mm) | 11 |
| Diameter bolt circle (DBC) (mm) | 101.6 |
| Maximum plunge depth (AZ) (mm) | 0 |
| Maximum ramping angle (RMPXFFW) (°) | 0 |
| Rotational speed maximum (RPMX) | 15,700 1/min |
| Sensor embedded property (SEP) | 0 |
| Standard letter (STDLET1) | C |
| Standard number (STDNO1) | ISO6462 |
| Tool cutting edge angle (KAPR) (°) | 90 |
| Torque (N m) | 3 |
| Weight of item (kg) | 2.567 |
