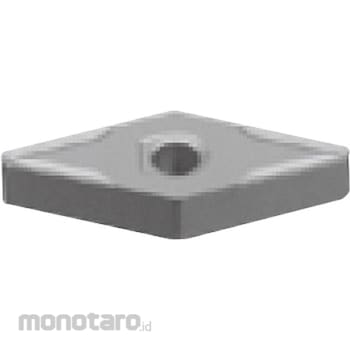

Sumitomo Electric Insert VNMG-EX
#Grup produk P103976181
Spesifikasi
| Thickness (mm) | 4.76 |
|---|---|
| Inscribed Circle Tolerance (mm) | +/- 0.05 to +/- 0.15 |
| Corner Radius (mm) | 0.8 |
| Thickness Tolerance (mm) | +/- 0.13 |
| Inscribed Circle Diameter (phi mm) | 9.525 |
| Shape | Diamond 35 degrees |
| Chip breaker | Both sides |
| Clearance Angle (degree) | 0 |
| Corner Height Tolerance (mm) | +/- 0.08 to +/- 0.2 |
| Cutting Blade Length (mm) | 16.6 |
| Hole Shape | Cylindrical hole |
| Material | AC530U |
| With Or Without Hole | Yes |
