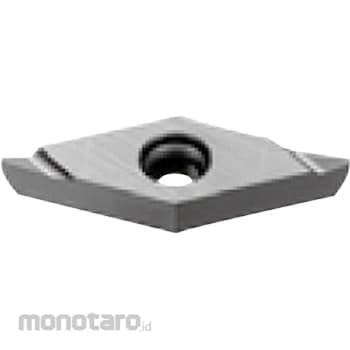

Sumitomo Electric Insert VCGT-FY
#Grup produk P103976136
Spesifikasi
| Thickness (mm) | 3.18 |
|---|---|
| Chip breaker | One side |
| Corner Height Tolerance (mm) | +/- 0.025 |
| Inscribed Circle Tolerance (mm) | +/- 0.025 |
| With Or Without Hole | Yes |
| Thickness Tolerance (mm) | +/- 0.13 |
| Clearance Angle (degree) | 7 |
| Cutting Blade Length (mm) | 11.2 |
| Hole Shape | Partially cylindrical hole one side 40 degrees - 60 degrees |
| Inscribed Circle Diameter (phi mm) | 6.35 |
| Shape | Diamond 35 degrees |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Warning
- Please confirm the size information and other product details on Attribute Information then place an order. - Image on this page only as Representative Image. It will follow the Product InformationUlasan Produk
