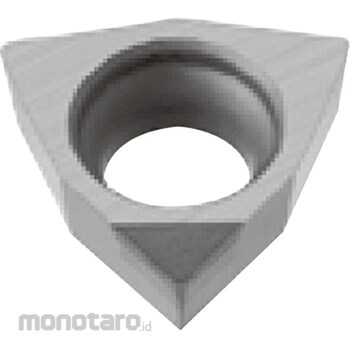

Sumitomo Electric Insert NU-WBEW-LT
#Grup produk P103975067
Spesifikasi
| Inscribed Circle Diameter (phi mm) | 12.7 |
|---|---|
| Chip breaker | None |
| Thickness (mm) | 2.38 |
| Clearance Angle (degree) | 5 |
| Material | BNX20 |
| Hole Shape | Partially cylindrical hole one side 40 degrees - 60 degrees |
| Corner Height Tolerance (mm) | +/- 0.025 |
| Corner Radius (mm) | 0.2 |
| Cutting Blade Length (mm) | 1.7 |
| Inscribed Circle Tolerance (mm) | +/- 0.025 |
| Shape | Hex 80 degrees |
| Thickness Tolerance (mm) | +/- 0.025 |
| With Or Without Hole | Yes |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Warning
- Please confirm the size information and other product details on Attribute Information then place an order. - Image on this page only as Representative Image. It will follow the Product Information - For items shipped separately, if ordered by cash on delivery, it will be shipped after the next dayUlasan Produk
