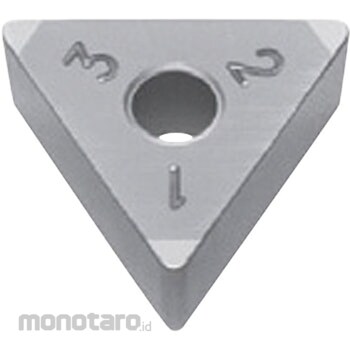

Sumitomo Electric Insert 3NC-TPGW-HS
#Grup produk P103973865
Spesifikasi
| Chip breaker | None |
|---|---|
| Material | BNC200 |
| Corner Radius (mm) | 0.8 |
| With Or Without Hole | Yes |
| Clearance Angle (degree) | 11 |
| Shape | Equilateral triangle 60 degrees |
| Corner Height Tolerance (mm) | +/- 0.025 |
| Cutting Blade Length (mm) | 2 |
| Hole Shape | Partially cylindrical hole one side 40 degrees - 60 degrees |
| Inscribed Circle Diameter (phi mm) | 9.525 |
| Inscribed Circle Tolerance (mm) | +/- 0.025 |
| Thickness (mm) | 4.76 |
| Thickness Tolerance (mm) | +/- 0.13 |
