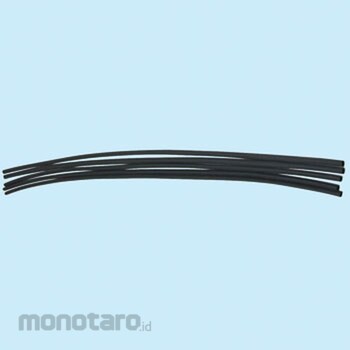

Sumitomo Electric Sumitube W3F2
#Grup produk P103972936
Spesifikasi
| Tensile Strength (MPa) | Before aging/10.4 or more After aging/7.3 or more (158 degrees Celsiusx7 days) |
|---|---|
| RoHS Directive | 10 substances |
| Ratio | 3:1 |
| Color | Black |
| Conformity Standard | Sumitomo Electric Fine Polymer Specifications (Specification number R4-0180), UL224 (certification file No.E75077), RoHS compliant |
| Continuous Operating Temperature (°C) | -55 to 125 |
| Dielectric Breakdown Voltage (kV) | Before aging/AC2.5 or more After aging/AC2.5 or more (158 degrees Celsiusx7 days, residual rate 50% or more) |
| Length (m) | 1.22 |
| Material | [Outer layer] Electron beam crosslinked soft flame-retardant polyolefin resin, [Interior] Heat-meltable adhesive |
| Shrink Completion Temperature (°C) | 110 |
| Shrink Temperature | 115 degrees Celsius or higher |
| Volume Resistivity (ohm.cm) | 1.0x1014 or more |
| Withstand Voltage | Before aging/AC2.5kVx60 seconds, no destruction After aging/158 degrees Celsiusx7 days, AC2.5kVx60 seconds, no destruction |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Waterproofing of electronic components with large steps, treatment of wire branch, insulation protection of wire connection
Feature
- UL224 standard product - Flame retardant (chlorine flame retardant, no specific bromine flame retardant (PBDE, PBB) not used) Flexible, adhesive to metals, polyolefins, PVC, waterproof - Excellent oil and chemical resistance.Ulasan Produk
