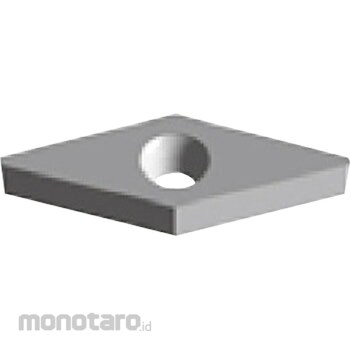

Sumitomo Electric Insert VBMW
#Grup produk P103970239
Spesifikasi
| Inscribed Circle Diameter (phi mm) | 9.525 |
|---|---|
| Inscribed Circle Tolerance (mm) | +/- 0.05 to +/- 0.15 |
| Cutting Blade Length (mm) | 16.6 |
| Chip breaker | None |
| Thickness (mm) | 4.76 |
| Thickness Tolerance (mm) | +/- 0.13 |
| Clearance Angle (degree) | 5 |
| Corner Height Tolerance (mm) | +/- 0.08 to +/- 0.2 |
| Hole Shape | Partially cylindrical hole one side 40 degrees - 60 degrees |
| Material | AC420K |
| Shape | Diamond 35 degrees |
| With Or Without Hole | Yes |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Warning
- Please confirm the size information and other product details on Attribute Information then place an order. - Image on this page only as Representative Image. It will follow the Product Information - For items shipped separately, if ordered by cash on delivery, it will be shipped after the next dayFeature
- Material: CVD coating. For rough and intermittent cutting of ductile cast iron and ordinary cast iron. A highly reliable grade that combines a tough special-purpose cemented carbide base material and a coating curtain with excellent peel resistance.Ulasan Produk
