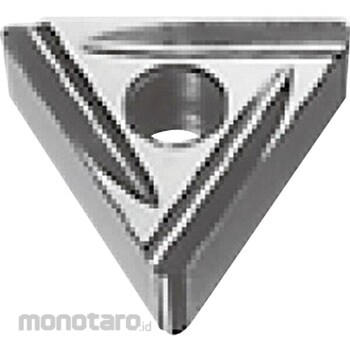

Sumitomo Electric Insert TNGG-MM
#Grup produk P103969288
Spesifikasi
| Chip breaker | Both sides |
|---|---|
| Shape | Equilateral triangle 60 degrees |
| With Or Without Hole | Yes |
| Hole Shape | Cylindrical hole |
| Cutting Blade Length (mm) | 22 |
| Corner Height Tolerance (mm) | +/- 0.025 |
| Clearance Angle (degree) | 0 |
| Corner Radius (mm) | 0.8 |
| Inscribed Circle Diameter (phi mm) | 12.7 |
| Inscribed Circle Tolerance (mm) | +/- 0.025 |
| Material | ST20E |
| Thickness (mm) | 4.76 |
| Thickness Tolerance (mm) | +/- 0.13 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Warning
- Please confirm the size information and other product details on Attribute Information then place an order. - Image on this page only as Representative Image. It will follow the Product InformationFeature
- Material: PVD coating. For stainless steel and heat-resistant alloys. PVD film with high adhesion to fine-grained base material.Ulasan Produk
