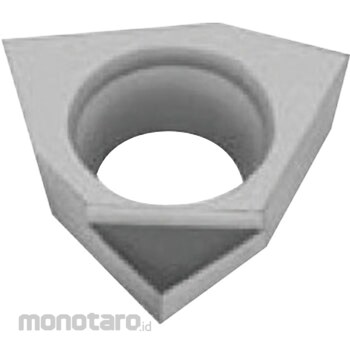

Sumitomo Electric Insert NF-WBMT
#Grup produk P103966768
Spesifikasi
| Inscribed Circle Tolerance (mm) | +/- 0.05 to +/- 0.15 |
|---|---|
| Hole Shape | Partially cylindrical hole one side 40 degrees - 60 degrees |
| Material | DA1000 |
| With Or Without Hole | Yes |
| Clearance Angle (degree) | 5 |
| Corner Height Tolerance (mm) | +/- 0.08 to +/- 0.2 |
| Chip breaker | One side |
| Cutting Blade Length (mm) | 3.2 |
| Inscribed Circle Diameter (phi mm) | 9.525 |
| Shape | Hex 80 degrees |
| Thickness (mm) | 1.59 |
| Thickness Tolerance (mm) | +/- 0.13 |
