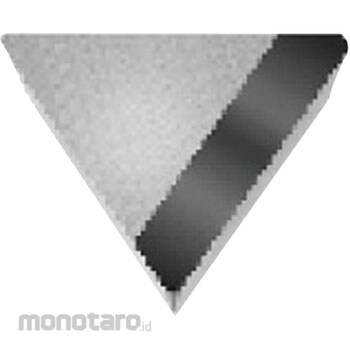

Sumitomo Electric Insert NF-TPGN-P
#Grup produk P103966704
Spesifikasi
| Chip breaker | None |
|---|---|
| With Or Without Hole | None |
| Shape | Equilateral triangle 60 degrees |
| Corner Height Tolerance (mm) | +/- 0.025 |
| Material | DA1000 |
| Clearance Angle (degree) | 11 |
| Corner Radius (mm) | 0.8 |
| Cutting Blade Length (mm) | 11 |
| Inscribed Circle Diameter (phi mm) | 6.35 |
| Inscribed Circle Tolerance (mm) | +/- 0.025 |
| Thickness (mm) | 3.18 |
| Thickness Tolerance (mm) | +/- 0.13 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Warning
- Please confirm the size information and other product details on Attribute Information then place an order. - Image on this page only as Representative Image. It will follow the Product Information - For items shipped separately, if ordered by cash on delivery, it will be shipped after the next dayUlasan Produk
