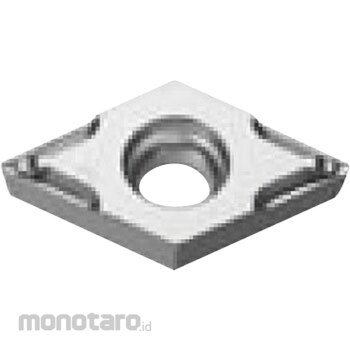

Sumitomo Electric Insert DCMT-FP
#Grup produk P103965617
Spesifikasi
| Inscribed Circle Tolerance (mm) | +/- 0.05 to +/- 0.15 |
|---|---|
| Shape | Diamond 55 degrees |
| Chip breaker | One side |
| Clearance Angle (degree) | 7 |
| With Or Without Hole | Yes |
| Corner Height Tolerance (mm) | +/- 0.08 to +/- 0.2 |
| Corner Radius (mm) | 0.4 |
| Cutting Blade Length (mm) | 7.7 |
| Hole Shape | Partially cylindrical hole one side 40 degrees - 60 degrees |
| Inscribed Circle Diameter (phi mm) | 6.35 |
| Material | T1500A |
| Thickness (mm) | 2.38 |
| Thickness Tolerance (mm) | +/- 0.13 |
