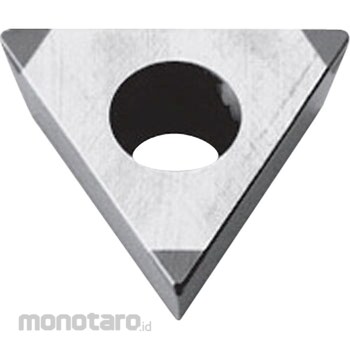

Sumitomo Electric Insert 3NU-TPGW-LF
#Grup produk P103964201
Spesifikasi
| Thickness (mm) | 3.18 |
|---|---|
| Inscribed Circle Diameter (phi mm) | 6.35 |
| Cutting Blade Length (mm) | 2.2 |
| Inscribed Circle Tolerance (mm) | +/- 0.025 |
| Chip breaker | None |
| Corner Height Tolerance (mm) | +/- 0.025 |
| Clearance Angle (degree) | 11 |
| Corner Radius (mm) | 0.8 |
| Hole Shape | Partially cylindrical hole one side 40 degrees - 60 degrees |
| Material | BN7500 |
| Shape | Equilateral triangle 60 degrees |
| Thickness Tolerance (mm) | +/- 0.13 |
| With Or Without Hole | Yes |
