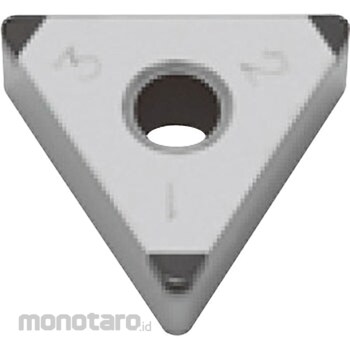

Sumitomo Electric Insert 3NU-TNGA-LS
#Grup produk P103964159
Spesifikasi
| Chip breaker | None |
|---|---|
| Inscribed Circle Tolerance (mm) | +/- 0.025 |
| Corner Height Tolerance (mm) | +/- 0.025 |
| Cutting Blade Length (mm) | 2.3 |
| With Or Without Hole | Yes |
| Hole Shape | Cylindrical hole |
| Clearance Angle (degree) | 0 |
| Corner Radius (mm) | 0.4 |
| Inscribed Circle Diameter (phi mm) | 9.525 |
| Material | BN7500 |
| Shape | Equilateral triangle 60 degrees |
| Thickness (mm) | 4.76 |
| Thickness Tolerance (mm) | +/- 0.13 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Warning
- Please confirm the size information and other product details on Attribute Information then place an order. - Image on this page only as Representative Image. It will follow the Product Information - For items shipped separately, if ordered by cash on delivery, it will be shipped after the next dayUlasan Produk
