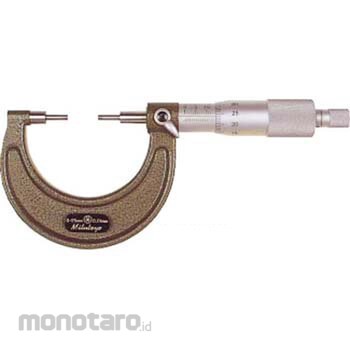

Mitutoyo Spline Micrometer SPM Series
#Grup produk P103938394
Spesifikasi
| Mitutoyo Part Number | SPM-25K |
|---|---|
| Minimum display amount (mm) | 0.01 |
| Flatness (µm) | 0.3 or less |
| Instrument Error (µm) | +/- (2 + maximum measurement length / 75) (rounded up) |
| Measurement Surface (mm) | phi 3 x 10 |
| Measuring Range (mm) | 0-25 |
| Parallelism (µm) | (2 + maximum measurement length/100) or less (rounded down) |
| Type | Count type |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Warning
- Items with calibration documents cannot be canceled after ordering. - For products with proofreading and traceability charts, only orders on the web will be accepted. - Documents that include (JCSS Calibration Certificate), (General Calibration Certificate / Traceability System Diagram) and (Calibration Certificate / Traceability System Diagram) are included in the product number. - For products with calibration documents, " Mitutoyo Calibration Certificate with Traceability System Diagram '', which the manufacturer performs calibration, and " Calibration Company Implementation Calibration Certificate, '' which performs calibration at calibration points based on the calibration company based on the ISO 9001 quality management system With traceability system diagram ".Feature
- Both measurement surfaces have been made fine so that it is particularly convenient to measure the diameter of the groove of the spline shaft. Measurement surface with cemented carbide tip With constant pressure deviceUlasan Produk
