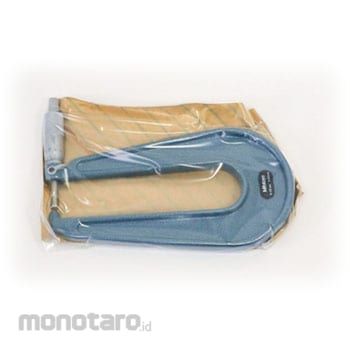

Mitutoyo Sheet Metal Micrometer PMU Series
#Grup produk P103938181
Spesifikasi
| Frame Depth (mm) | 150 |
|---|---|
| Mitutoyo Part Number | PMUS150-25 |
| Dimension C (mm) | 2.8 |
| Dimension E (mm) | 6.35 |
| Dimension A (mm) | 160 |
| Dimension B (mm) | 27.5 |
| Dimension F (mm) | 14.5 |
| Dimension G (mm) | 48 |
| Dimension L (mm) | 30.3 |
| Dimensions d (mm) | 18 |
| Flatness (µm) | 0.6 or less |
| Instrument Error (µm) | +/- (3 + maximum measurement length/75) (rounded up) |
| Measurement Surface Shape | Hemisphere |
| Measuring Range (mm) | 0-25 |
| Minimum display amount (mm) | 0.01 |
| Parallelism (µm) | 3 or less |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Warning
- Items with calibration documents cannot be canceled after ordering. - For products with proofreading and traceability charts, only orders on the web will be accepted. - Documents that include (JCSS Calibration Certificate), (General Calibration Certificate / Traceability System Diagram) and (Calibration Certificate / Traceability System Diagram) are included in the product number. - For products with calibration documents, " Mitutoyo Calibration Certificate with Traceability System Diagram '', which the manufacturer performs calibration, and " Calibration Company Implementation Calibration Certificate, '' which performs calibration at calibration points based on the calibration company based on the ISO 9001 quality management system With traceability system diagram ".Feature
- For measuring the thickness of steel sheet. The measuring surface has a cemented carbide tip. There are three types of measurement surface shapes: flat, hemispherical, and bispherical. With constant pressure device. The measurement surface on the anvil side is spherical.Ulasan Produk
