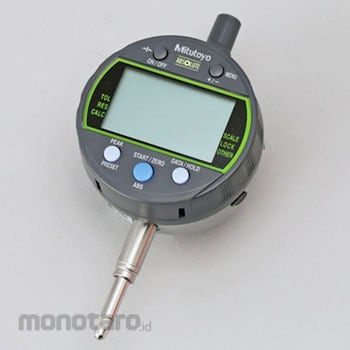

Mitutoyo Digimatic Indicator Peak Value Hold Type
#Grup produk P103935810
Spesifikasi
| Return Error (mm) | 0.002 or less |
|---|---|
| Type | With peak detection function |
| Repeat Precision (mm) | 0.002 or less |
| Response Speed | Unlimited |
| Analog Bar Display | +/- 20 scale |
| Detection Method | ABS capacitance type absolute encoder |
| Display | 330 degrees rotation |
| Measuring Range (mm) | 12.7 |
| Minimum display amount (mm) | 2-step switching (0.001mm/0.01mm) |
| Power Supply | CR2032 x 1 |
| Wide Range Accuracy (mm) | 0.003 or less |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Function : Preset: 3 master value memory, tolerance judgment: 4 upper/lower limit value memory *: 3 master values (P1, P2, P3) and incremental type, peak detection: TIR, Max, Min, calculation: Ax '+ B + Cx'- 1 (x '= x + offset), measured value memory:-, display value hold: Available, setting input possible from PC (dedicated I/F), key lock possible (main unit operation or PC communication), parameter lock possible (Can be set via PC communication), center-lug back Battery Life (About Normal Use) : 1 year * When data processing device is not connected. Battery life varies depending on the number of uses and usage.
Warning
- For separately delivered items, if ordered by cash on delivery, it will be shipped after the next day [For products with calibration documents, it will not be possible to cancel after ordering] - For products with calibration documents and traceability system diagram, order on the web Only. - Documents that include (JCSS Calibration Certificate), (General Calibration Certificate / Traceability System Diagram) and (Calibration Certificate / Traceability System Diagram) are included in the product number. - For products with calibration documents, " Mitutoyo Calibration Certificate with Traceability System Diagram '', which the manufacturer performs calibration, and " Calibration Company Implementation Calibration Certificate, '' which performs calibration at calibration points based on the calibration company based on the ISO 9001 quality management system With traceability system diagram ".Feature
- Various buttons can be operated simply with three buttons and status icons. - Equipped with a wide LCD view and a new analog bar as standard. - High tracking performance is achieved by a high sampling rate.Use
- With peak detection functionUlasan Produk
