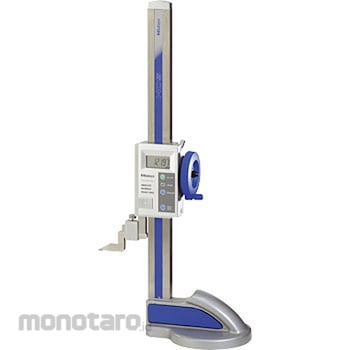

Mitutoyo ABS Digimatic Height Gauge
#Grup produk P103934060
Spesifikasi
| Mass (kg) | 4.6 |
|---|---|
| Function | ORIGIN (absolute origin) setting function, ABS (absolute) measurement function, INC (incremental) measurement function, hold function, output function, low battery voltage alarm |
| Overall Height (mm) | 507 |
| Fit | Connection cable for data output 1m: No.905338 2m: No.905409 |
| Product Type | Body |
| Accessories | Scriber, scriber clamp, holder arm C, clamp (with dovetail groove) |
| Battery Life (hour) | 20000 |
| Display | LCD 6 digits, character height 10mm |
| Display Format | Digital |
| Instrument Difference (mm) | +/- 0.03 |
| Measuring Range (mm) | 0-300 |
| Minimum display amount (mm) | 0.01 |
| Mitutoyo Part Number | 570-322 |
| Power Supply | SR44 (button type silver oxide battery) x 1 |
| Repeatability (mm) | 0.01 |
| Series | 570 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Warning
- Items with calibration documents cannot be canceled after ordering. - Separate shipments will be shipped from the next day if ordered by cash on delivery. - Documents that include (JCSS Calibration Certificate), (General Calibration Certificate / Traceability System Diagram) and (Calibration Certificate / Traceability System Diagram) are included in the product number. - For products with calibration documents, " Mitutoyo Calibration Certificate with Traceability System Diagram '', which the manufacturer performs calibration, and " Calibration Company Implementation Calibration Certificate, '' which performs calibration at calibration points based on the calibration company based on the ISO 9001 quality management system With traceability system diagram ".Feature
- Smooth up and down movement is possible with the same slider moving handle as the well-established two-column height gauge. The large clamp lever ensures reliable clamping operation. The durable and high precision is guaranteed by the 35x15mm rigid support. The character height of the count display is 10 mm. I adopt the base of the novel design which fits a hand. Built-in ABS (absolute) scale eliminates the need to adjust the base point each time the power is turned on.Ulasan Produk
