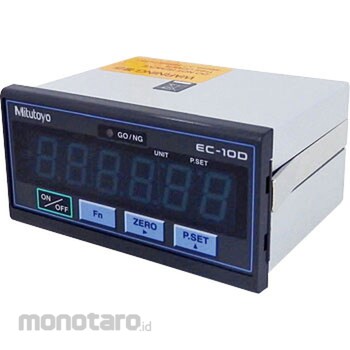

Mitutoyo 542 Series Display Unit Eco Counter
#Grup produk P103933478
Spesifikasi
| Minimum display amount (mm) | 0.01 / 0.001 |
|---|---|
| Mitutoyo Part Number | 542-007 |
| Output Method | Switching between Digimatic output and tolerance judgment output by parameter |
| Tolerance Judgment Display | 3-stage LED display (orange, green, red) |
| Display Range (mm) | +/- 9999.99/+/- 999.999: Maximum |
| Tolerance Judgment Output | OK, + NG, -NG (open collector) |
| Accessories | AC adapter rubber feet |
| Dimensions (W x H x D) (mm) | 96x48x84.6 |
| Input Method | Preset, display hold (when tolerance judgment output) |
| Operating Temperature Range (°C) | 0-40 (20-80% RH non-condensing) |
| Power Supply | Dedicated AC adapter No.526688 |
| Quantization Error | +/- 1 count |
| Storage Temperature Range (°C) | -10 to 50 (20 to 80% RH non-condensing) |
| Weight (g) | 150 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Feature
- A comparative measuring instrument that delivers high quality, high accuracy and reliability. Three-step tolerance judgment display is possible. 3-stage tolerance output or Digimatic output is possible. Small size of DIN size (96 x 48mm).Ulasan Produk
