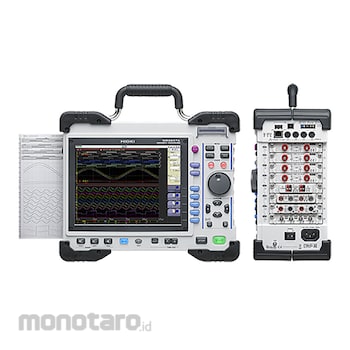

Hioki Memory HiCorder
#Grup produk P103923620
Kondisi Barang:
Spesifikasi
| Frequency Characteristics | DC to 100 kHz (-3 dB, when using the MR8901) |
|---|---|
| Display | Touch-panel operation 8.4-inch SVGA-TFT color LCD (800 x 600 dots) |
| Power Supply | AC adapter Z1002, Battery pack Z1003, External DC Power |
| Maximum rated voltage | Between terminals: 150 V DC, Between terminal to earth: 100 V AC, DC (when using the MR8901) |
| Measurement Ranges 20 Div Full-scale | 5 mV to 10 V/div , 11 ranges (when using the MR8901), 500 mV to 50 V/div , 7 ranges (when using the MR8905) |
| Number of Channels | Max. 16 analog channels (Max. 60 channels when using the MR8902) + standard 8 logic channels + 2 pulse channels |
| Number of Input Units | Up to 4 slots |
| Resolution | 1/1250 of range |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Hioki Memory HiCorders are high-speed waveform monitoring and recording devices that can simultaneously measure multiple physical phenomena such as voltage, current, temperature, vibration, acceleration and rotation due to complete isolation between channels and from each channel to the ground.
Feature
- Supports a wide variety of measurements with a total of 13 plug-in modules - Generate and record with a single unit - Direct 1000 V high voltage input testing - High-speed sampling up to 20MS/s with fully isolated inputs - 16 analog + 16 logic channels to 64 logic + 10 analog channels - High-speed sampling with waveform judgement function - Soil-resistant construction strong against adverse working environments - Big buttons coated to withstand industrial oil and residue - Drop-in paper loading and one-touch setup, along with high-speed 50mm/s printing Accessories: Instruction manual x1, Measurement guide x1, Application disk (Wave viewer Wv, Communication commands table) x1, Power cord x1, Input cord label x1, USB cable x1, Printer paper x1, Roll paper attachment x2, Ferrite clamp x1 External Interfaces: [LAN] 100BASE-TX (FTP server, HTTP server), [USB] USB2.0 compliant, series A receptacle x1, series B receptacle x1, (File transfer internal drive/CF card to PC, or remote control from PC)Ulasan Produk
