Hioki AC Clamp Power Meter
#Grup produk P103776332
Kondisi Barang:
Spesifikasi
| Power Supply | LR03 ×2 Alkaline |
|---|---|
| AC Current (A) | 600 |
| AC Measurement System | True RMS |
| Core Jaw Diameter (inch) | φ1.81 |
| Core Jaw Diameter (mm) | φ46 |
| Display Refresh Rate | 2 times / s |
| Dustproof and Waterproof | IP20, IP50 |
| Frequency Characteristic (Hz) | 45 to 1k |
| Guaranteed Accuracy Range (A) | 0.06 to 600 |
| Power (W) | 360k (AC) |
| Resolution | 0.001 |
| Safety Standard Category | CAT IV 600 V CAT III 1000 V |
| Voltage (V) | 600 (AC); 999.9 (DC) |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description

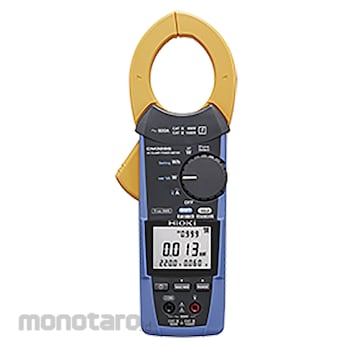

Hioki clamp meters are best in class handheld current and voltage meters for safely and accurately measuring power lines. The CM3286 clamp on power meter can measure voltage, current, power, power factor, phase angle, reactive power or frequency, as well as detect phase sequence on live lines at any desired point of a single-phase circuit or three-phase circuit.
Feature
- Display four parameters simultaneously. - A handheld power meter that measures from 5W of power and 60mA of current. - Measure power ranging from 5W at a low current of 60 mA to 360kW. - In addition to current, voltage, and power, measure simple integral power consumption and phase sequence. - Features and functions deliver fast and efficient testing. - Hold measured values to send them to a smartphone, quick and easy data recording (CM3286-01 only).Dokumentasi Produk
